Seeed Studio SenseCAP Card Tracker T1000-E for Meshtastic








CHF 43.70
Verfügbarkeit: Vorrätig
SenseCAP Card Tracker T1000-E for Meshtastic ist ein Hochleistungs-Tracker, der für Meshtastic entwickelt wurde (kann auch für MeshCore verwendet werden). Er ist so klein wie eine Kreditkarte, passt mühelos in deine Tasche oder lässt sich an Wertgegenständen befestigen. Er enthält das GPS-Modul LR1110 von Semtech, nRF52840 von Nordic und AG3335 von Mediatek und bietet Meshtastic-Benutzern eine hochpräzise, stromsparende Ortungs- und Kommunikationslösung.
Technische Details
| Network protocol | LoRa (Supports 863-928 MHz range), Bluetooth v5.1 |
| Temperature | Range: -20 to 60℃; Accuracy: ± 1℃ (min ±0.5℃, max ±1℃) Resolution: 0.1℃ |
| Light | 0 to 100% (0% is dark, 100% is brightest) |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement (Not currently used in the Meshtastic firmware) |
| LED and Buzzer | 1×LED and 1× buzzer to indicate status |
| Button | 1× Button to operate |
| Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Communication Distance | 2 to 5km (depending on antenna, installation, and environments) |
| IP Rating | IP65 |

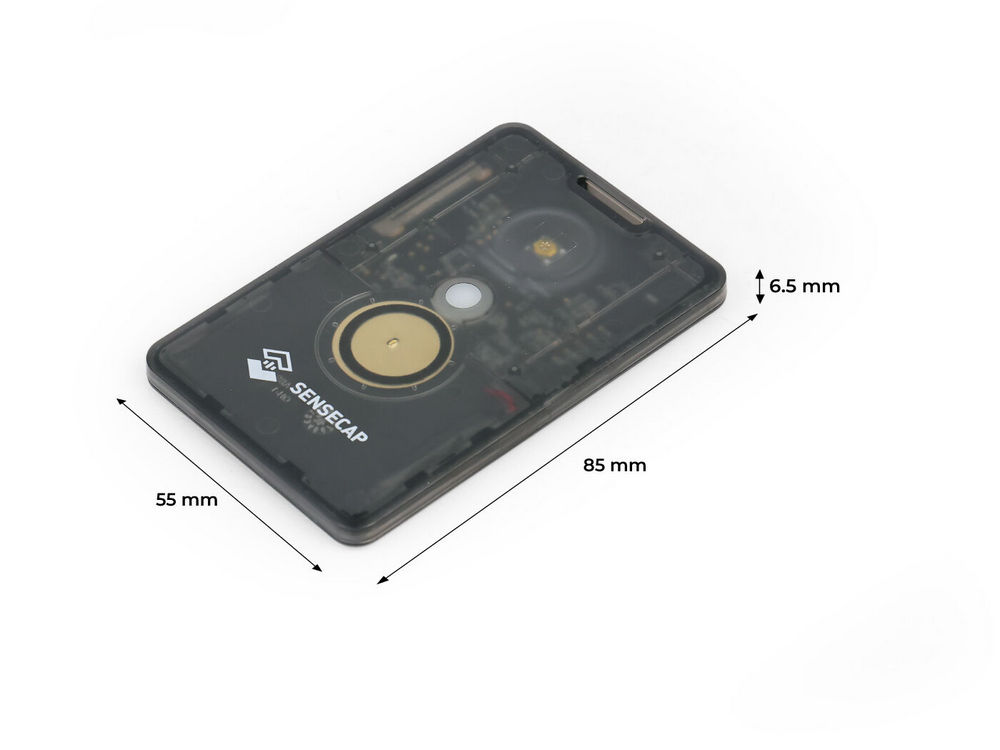

| Dimensions | 85 × 55 × 6.5 mm |
| Device Weight | 32g |
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | 5% – 95% (No condensation) |
| Certification | CE /FCC |
| Battey Capacity | Rechargeable lithium battery, 700mAh |
| Battery Life Monitoring | Periodic uplink battery level |
| Charge Cable (Adapter not included) |
USB magnetic charging cable, 1 meter |
| Power Input Voltage | 4.7 to 5.5V DC |
| Charging Temperature Limit | 0 to +45℃ |
![]()
Lieferumfang
1 × SenseCAP Card Tracker T1000-E for Meshtastic
1 × USB Kabel (ohne Netzteil)
Dokumentation und Startguide
Seeed Studio SenseCAP Card Tracker T1000-E for Meshtastic
CHF 43.70
Verfügbarkeit: Vorrätig
SKU
SES-114993369
Kategorie Seeed Studio
Tags Bluetooth, GPS, LoRa, LoRaWAN, MeshCore, Meshtastic, nRF52840, Thread, Tracker, Zigbee
Marke: Seeed Studio
